Traction Gas Spring

What is a Traction Gas Spring?



Traction Gas Spring, also known as tension gas spring, pulling gas spring, tension gas struts, pulling tension gas struts, and pull gas struts, is an important component in modern industrial machinery. It is used to absorb and store the energy from motion and vibration, enabling it to suspend and balance components such as force-balanced doors, automated machine guards, and agricultural machinery.

Traction gas springs work by trapping a mix of compressed nitrogen and hydrogen gas under high pressure, inside a cylindrical tube. As the gas expands, it creates a powerful downward force, making the spring both compact and reliable. The force from the spring can be added to with a mechanical strut or lever, and then quickly released by turning a release valve.



Applications of Traction Gas Spring



Traction Gas Springs are widely used in industrial applications in order to provide energy-efficient, reliable and durable solutions. The springs are used for counterbalancing doors, using as tension lug support, and stabilizing agricultural machines, to name a few.



The Traction Gas Spring is also used in various applications in the automotive industry, for example in hoods, hatches, and lids. The power of the spring can be adjusted to fit the requirements of the specific job, by simply turning the release valve.



Winson Tension Gas Springs, Quality Assurance !



At Winson, our pulling tension gas springs are of the highest quality. Our traction gas springs are manufactured in accordance with international standards and offer superior performance. This is why we are a trusted supplier of tension gas struts among customers in a variety of industries in the global market.

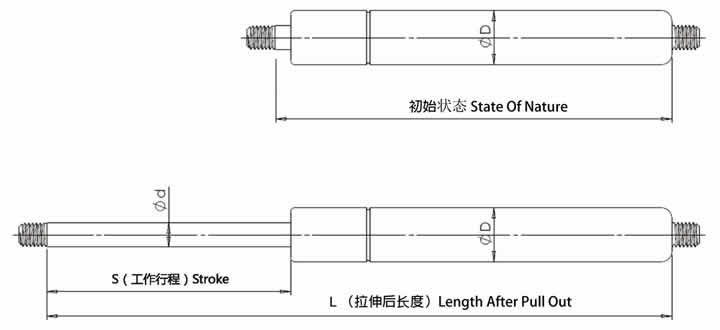

Specifications of Tension Gas Spring

Size (d/D)	Stroke (S)	Force Range	Extended Length(L)	Materials
6/18	30-300mm	100-600N	2S + 85 mm	Steel / Stainless
8/22	30-400mm	200-1000N	2S + 85 mm	Steel / Stainless
10/28	30-500mm	300-1500N	2S + 100 mm	Steel / Stainless
14/40	50-500mm	500-3500N	2S + 100 mm	Steel / Stainless
Comments	Specifications of Traction Gas Springs Traction Gas Springs are available in a range of sizes, including standard and customized designs. In addition, their energy level can be tuned to the requirements of the job. Standard spring sizes are available from 6 mm to 32mm, and the range might be even bigger depending on the type of product.   The gas springs are designed to work in temperatures from -20C to +80°C, and they have an operating life of approximately 50,000 cycles.
